Overview

Mostyn enterprises manufactures a range of RF modules, ranging in frequency from 1-3000MHz, with new modules up to 6GHz being added to the line-up within the next 12 months. These modules can be used as primary building blocks for power amplifiers and are encased in a CNC machined aluminium housing, plated in nickel or anodised.

RF Module Comparison

Part Number Description Power Min Freq Max Freq Datasheet
MEB-400-2M-30M 400W 2-30MHz High Gain LDMOS-Based RF Module 400 2 30 test
MEB-150-30M-512M 150W 30-512MHz High Gain VDMOS-Based RF Module 150 30 512 test
MEB-125-1M5-30M 125W 1.5-30MHz Medium Gain LDMOS-Based RF Module 125 1.5 30 test
MEB-125-30M-512M 125W 30-512MHz Medium Gain LDMOS-Based RF Module 125 30 512 test
MEB-100-20M-512M 100W 20-512MHz High Gain LDMOS-Based RF Module 100 20 512 test
MEB-80-20M-1G 80W 20-1000MHz Medium Gain LDMOS-Based RF Module 80 20 1000 test
MEB-80-500M-1G 80W 500-1000MHz High Gain LDMOS-Based RF Module 80 500 1000 test
MEB-70-1M-1G 70W 1-1000MHz High Gain GaN-Based RF Module 70 1 1000 test
MEB-60-200M-2G 60W 200-2000MHz Medium Gain GaN-Based RF Module 60 200 2000 test
MEB-25-20M-3G 25W 20-3000MHz Medium Gain GaN-Based RF Module 25 20 3000 test
MEB-20-20M-1G 20W 20-1000MHz High Gain LDMOS-Based RF Module 20 20 1000 test
MEB-20-20M-512M 20W 20-512MHz Medium Gain LMDOS-Based RF Module 20 20 512 test
MEB-20-400M-3G 20W 400-3000MHz Medium Gain GaN-Based RF Module 20 400 3000 test
MEB-10-20M-1G 10W 20-1000MHz High Gain VDMOS-Based RF Module 10 20 1000 test
MEB-10-20M-2G 10W 20-2000MHz Medium Gain GaN-Based RF Module 10 20 2000 test
MEB-10-20M-2G5 10W 20-2500MHz Medium Gain GaN-Based RF Module 10 20 2500 test

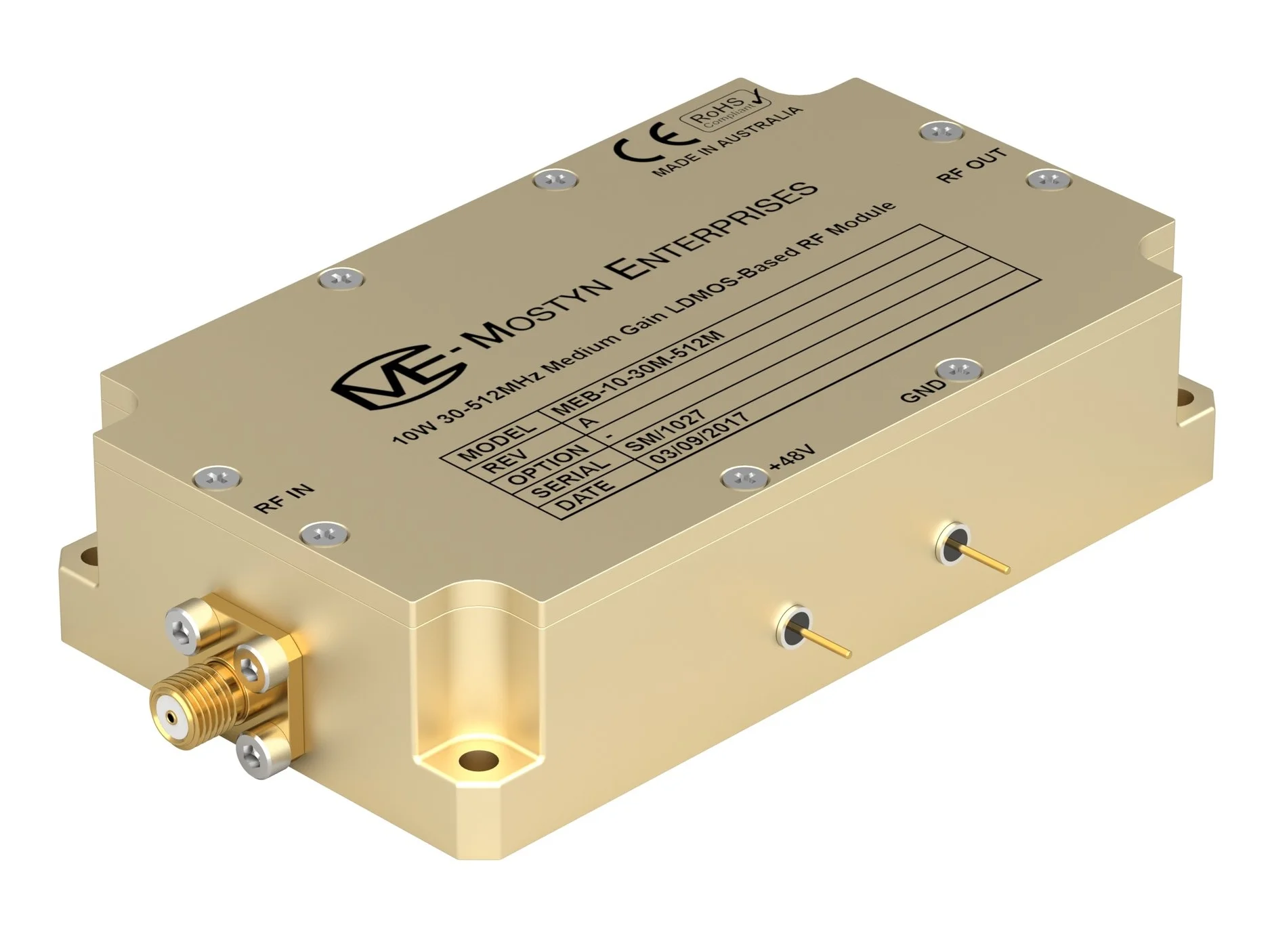

MEB-10-30M-512M 10W 30-512MHz Medium Gain LDMOS-Based RF Module 10 30 512 test
MEB-8-20M-3G 8W 20-3000MHz Medium Gain GaN-Based RF Module 8 20 3000 test
MEB-1W5-3D-5E12 1.5W 30-512MHz Medium Gain VDMOS-Based RF Module 1.5 30 512 test
MEB-1-20M-1G 1W 20-1000MHz Medium Gain LDMOS-Based RF Module 1 20 1000 test

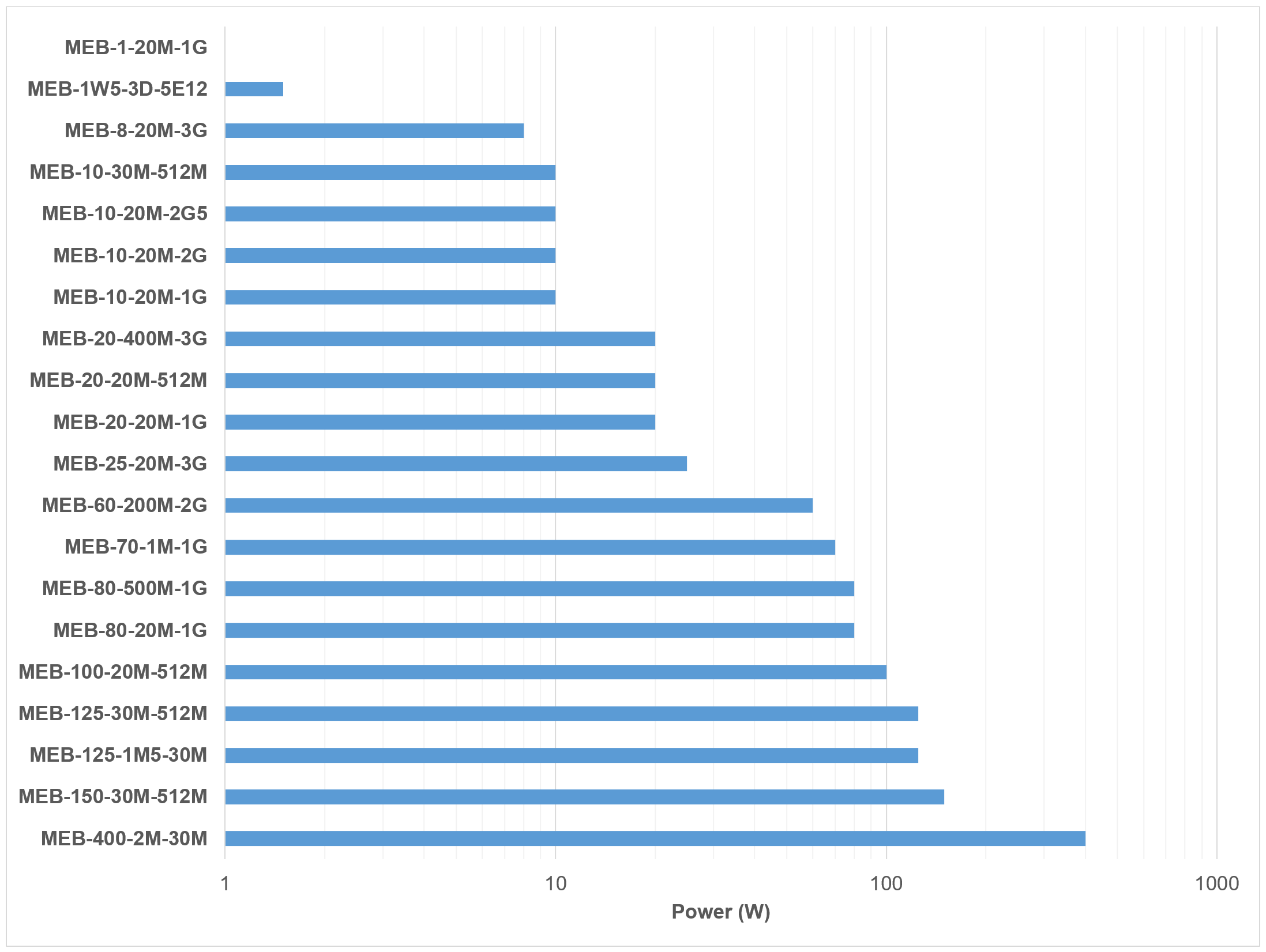

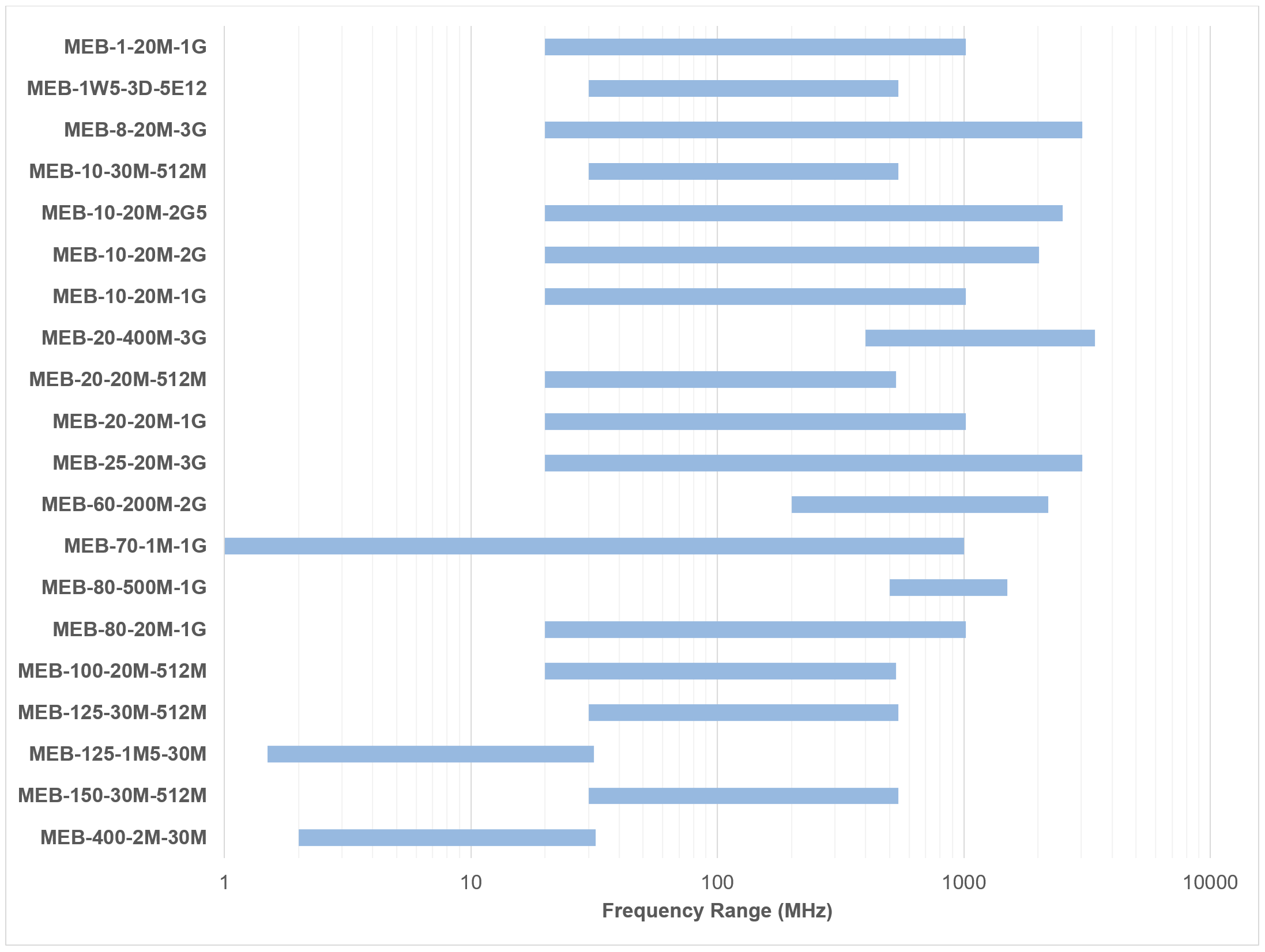

rf module comparison1.png

MB-8W-3D-512C

rf module pic2.png
  • Single stage medium gain stand-alone.
  • Driver for a higher powered amplifier.
  • Automatic gain control (Optional)
    • Using a voltage controlled PIN diode attenuator.

Pricing
1: Consult factory
5: Consult factory
10: Consult factory
25+: Consult factory

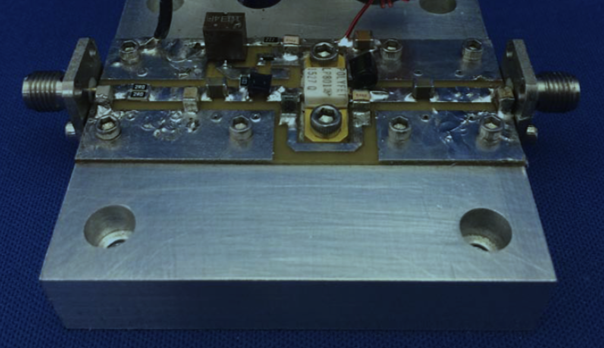

rf module pic3.png
rf module table1.JPG

  MB-1W5-3D-512C

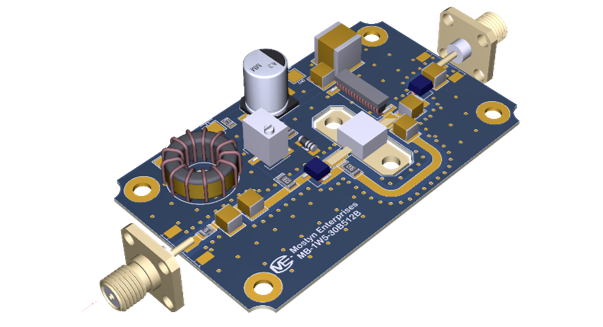

rf module pic4.png
  • Single stage medium gain stand-alone.
  • Driver for a higher powered amplifier.
  • Automatic gain control (Optional)
  • Using a voltage controlled PIN diode attenuator.

Pricing
1: Consult factory
5: Consult factory
10: Consult factory
25+: Consult factory

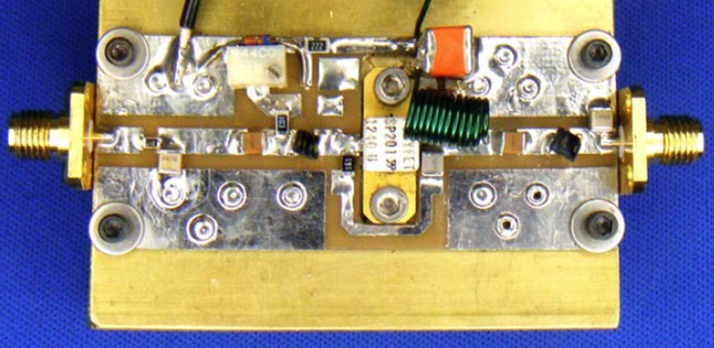

rf module pic5.png
rf table2.JPG

MB-1W-2D-1F

rf module pic6.png
  • Single stage medium gain stand-alone.
  • Driver for a higher powered amplifier.
  • Automatic gain control (Optional)
  • Using a voltage controlled PIN diode attenuator.

Pricing
1: Consult factory
5: Consult factory
10: Consult factory
25+: Consult factory

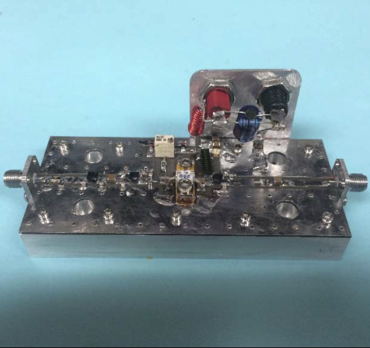

rf module pic7.png
rf table 3.JPG

MB-400W-2D-3D

rf module pic8.png
  • Single stage high gain stand-alone.
  • Automatic gain control (Optional)
    • Using a voltage controlled PIN diode attenuator

Pricing
1: Consult factory
5: Consult factory
10: Consult factory
25+: Consult factory

rf module table 5.JPG

  MB-70-W-1C-1F

rf module pic9.png
  • Single stage high gain stand-alone.
  • Automatic gain control (Optional)
    • Using a voltage controlled PIN diode attenuator.

Pricing
1: Consult factory
5: Consult factory
10: Consult factory
25+: Consult factory

rf table 6.JPG

MB-150W-3D-512C

rf module pic10.png
  • Single stage medium gain stand-alone.
  • Driver for a higher powered amplifier.
  • Automatic gain control (Optional)
  • Using a voltage controlled PIN diode attenuator.

Pricing
1: Consult factory
5: Consult factory
10: Consult factory
25+: Consult factory

rf module pic11.png
rf table 7.JPG

MB-8W-2D-25E

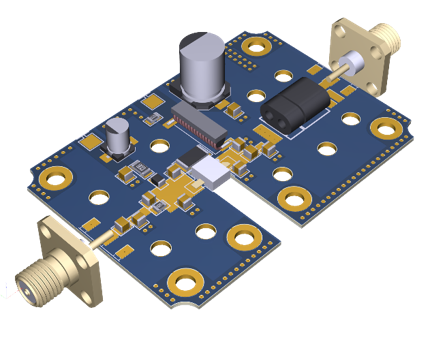

rf module pic12.png
  • Single stage medium gain stand-alone.
  • Driver for a higher powered amplifier.
  • Automatic gain control (Optional)
  • Using a voltage controlled PIN diode attenuator.

Pricing
1: Consult factory
5: Consult factory
10: Consult factory
25+: Consult factory

rf module pic13.png

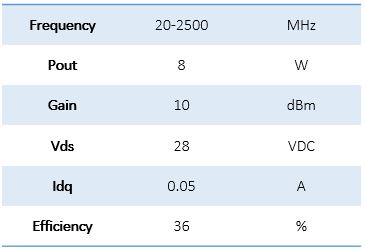

rf table 8.JPG
