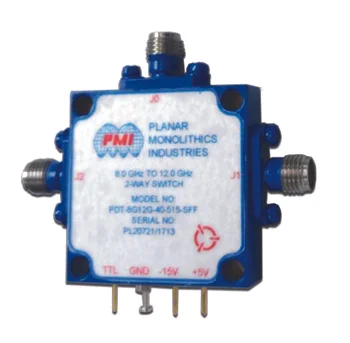

PDT-8G12G-40-515-SFF


PMI Model No. PDT-8G12G-40-515-SFF is an 8.0 to 12.0 GHz, 2 way high power
switch that has an insertion loss of 2.0 dB maximum and a VSWR of 1.8:1
maximum. The operating power is +40 dBm CW average, +57 dBm 1 μs, 1% duty cycle
with an isolation of 40 dB minimum. Switching Speed 200 ns maximum - measured 100
ns, power supply requirements +5 V @ 100 mA and -15 V @ 60 mA. Features include
SMA female connectors. Unit size is 1.15" x 1.25" x 0.30" with painted blue finish.
