PXS-500M18G-60-SFF

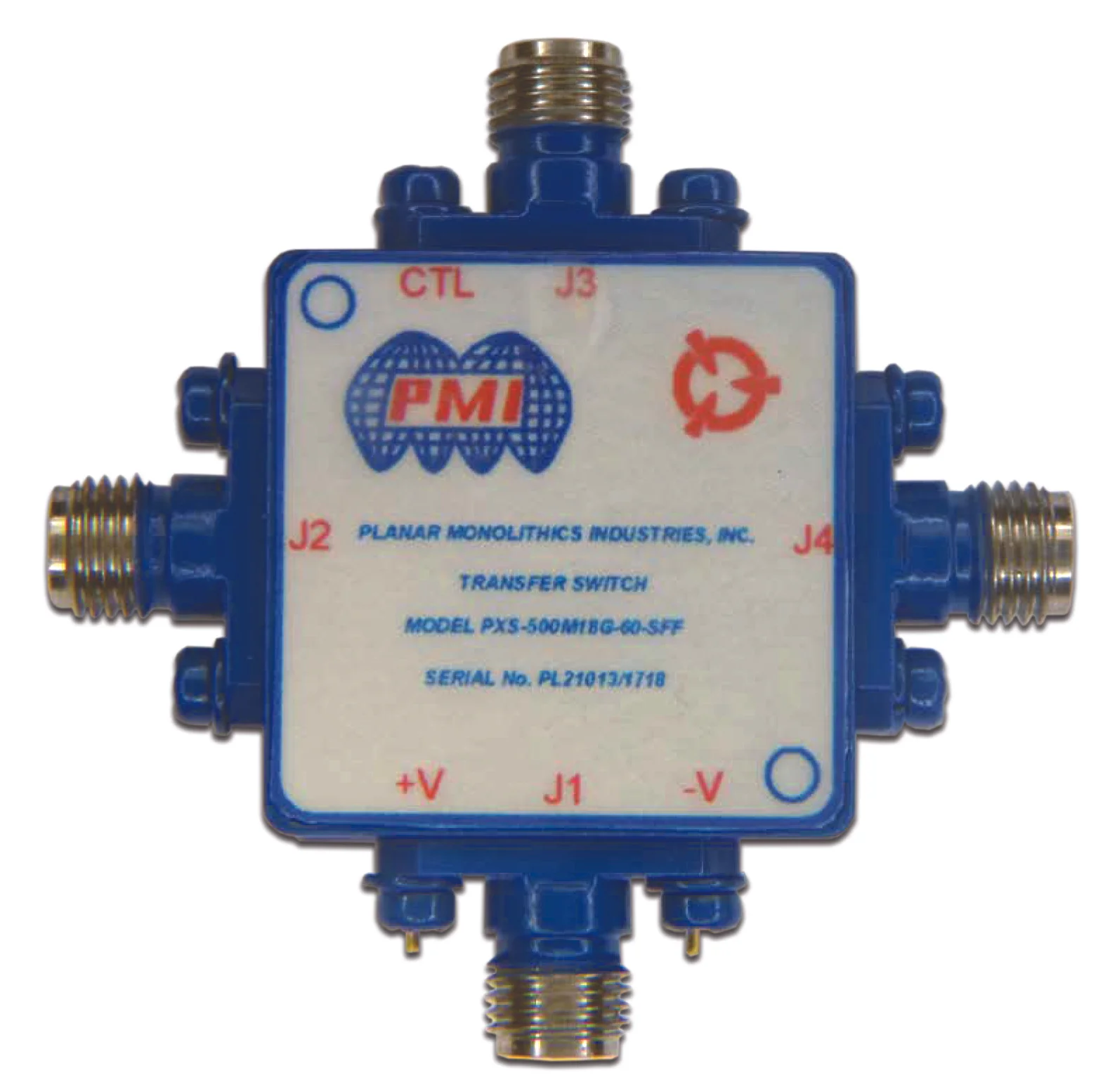

PMI Model No. PSX-500M18G-60-SFF is a pin diode transfer switch that operates over
the 500 MHz to 18 GHz frequency range. Specifications include 60 dB minimum
isolation, 3.0 dB maximum insertion loss, VSWR In/Out 1.9:1 maximum, +20 dBm CW
maximum input power and 100 ns maximum switching speed. This model incorporates
a TTL compatible driver for easy system integration. Hermetically sealed units are
available as an option. Features SMA (F) RF connectors, light weight design 1.4 oz and
package size of 1.0" x 1.0" x 0.5".
