P4T-0R3G18G-70-T-SFF

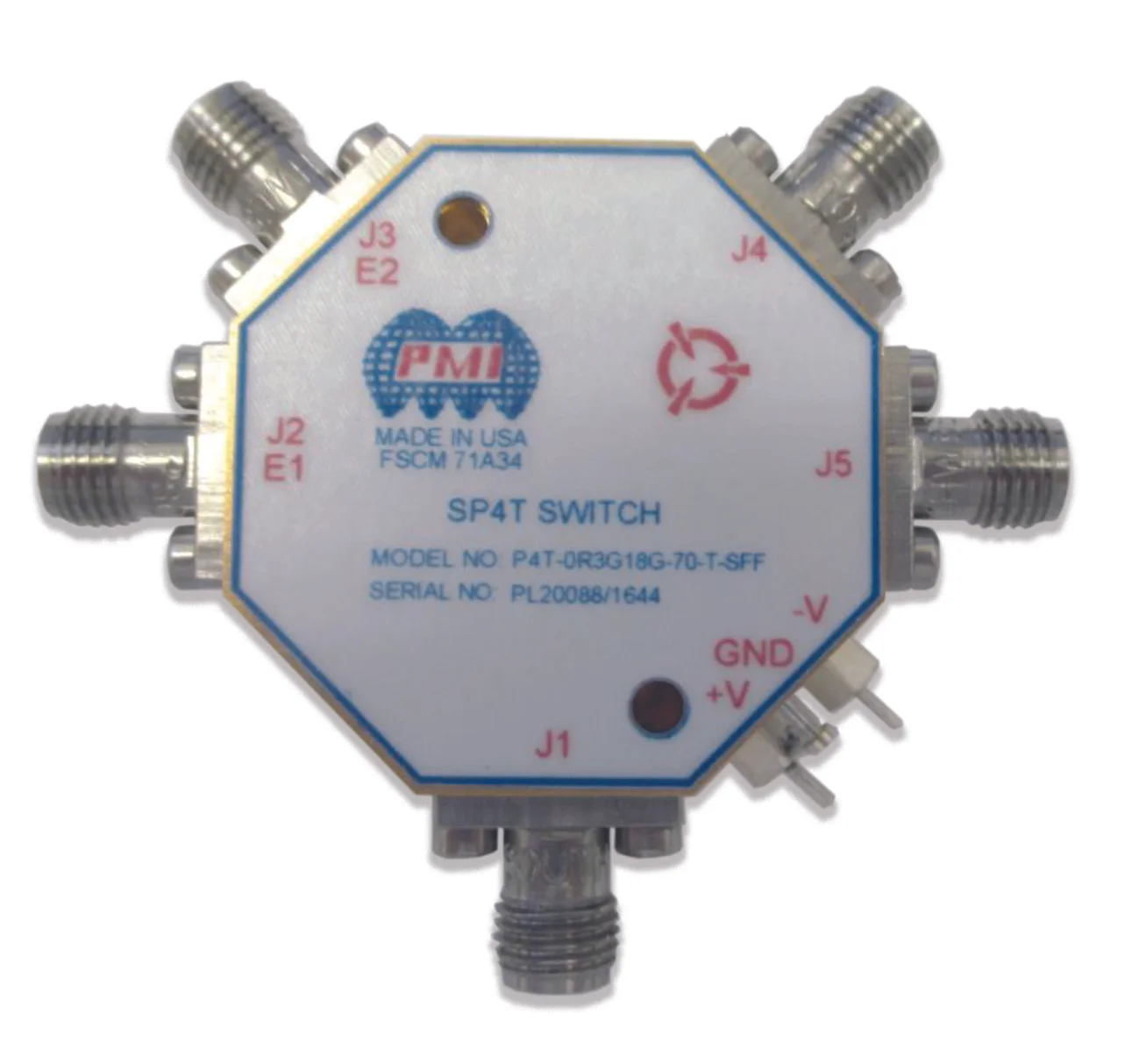

PMI Model P4T-0R3G18G-70-T-SFF is a single pole four throw absorptive switch
operating from 0.3 GHz TO 18.0 GHz. It has a maximum insertion loss of 3.75 dB and
isolation of 70 dB minimum. Other specifications include VSWR 2.0:1, Maximum input
power +20 dBm CW maximum, Survival Power 1 W CW maximum (+30 dBm) and 10 W
Peak 1 μs Pulse, 1% Duty Cycle, Features SMA (f) RF connectors and a operating
temperature range of -40 ºC to +85 ºC.
