SDLVA-218-60-70MV-CW

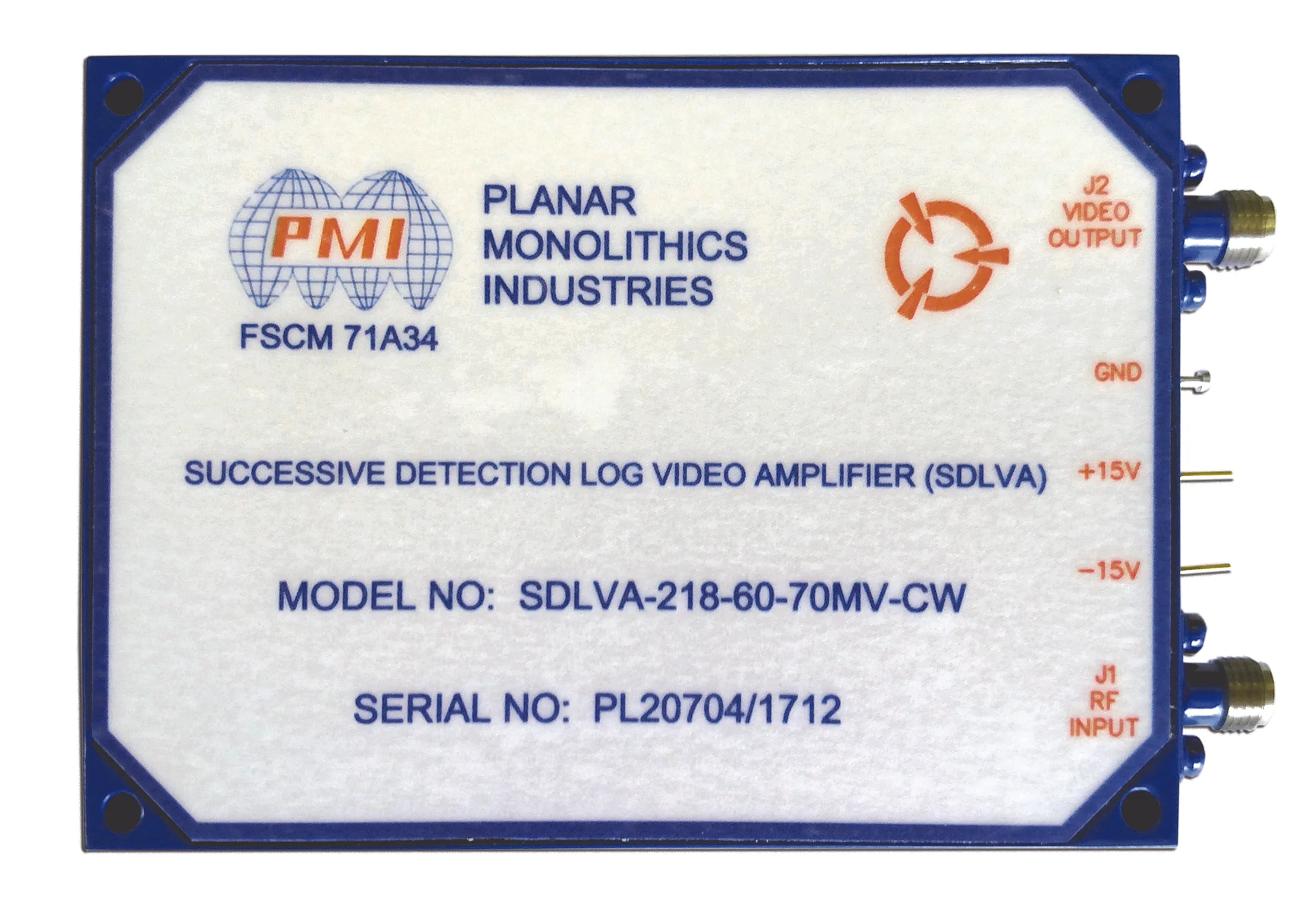

PMI Model No. SDLVA-218-60-70MV-CW is a CW immune SDLVA (Successive
Detection Log Video Amplifier). This unit operates from 2.0 to 18.0 GHz and has the
ability to interface with a long cable (65 FT), while maintaining high speed, flatness and
accuracy. Specifications include frequency flatness: ±2.0 dB Typ, Signal Capability:
Pulse (100 ns to 300 μs), Pulse on CW TSS: (-20 ºC to +85 ºC) -66 dBm for 10 MHz
Video Bandwidth, Log Dynamic Range -60 dBm to 0 dBm, Log Slope 70 mV/dB
nominal, Log Linearity ±1.5 dB Max,Max Input Level: +20 dBm CW, Video Output
Drive: Through 65 Feet, 75 Ohms Cable, Into 75 Ohms load, Power Supply +15 VDC
@ 400 mA Max, -15 VDC @ 150 mA Max and Operating Temperature -20 °C to +85
°C. Package size 2.3" x 2.2" x 0.4" with SMA female connectors and conduction cooling
at mounting surface.
