DLVA-8G10G75-50-SFF

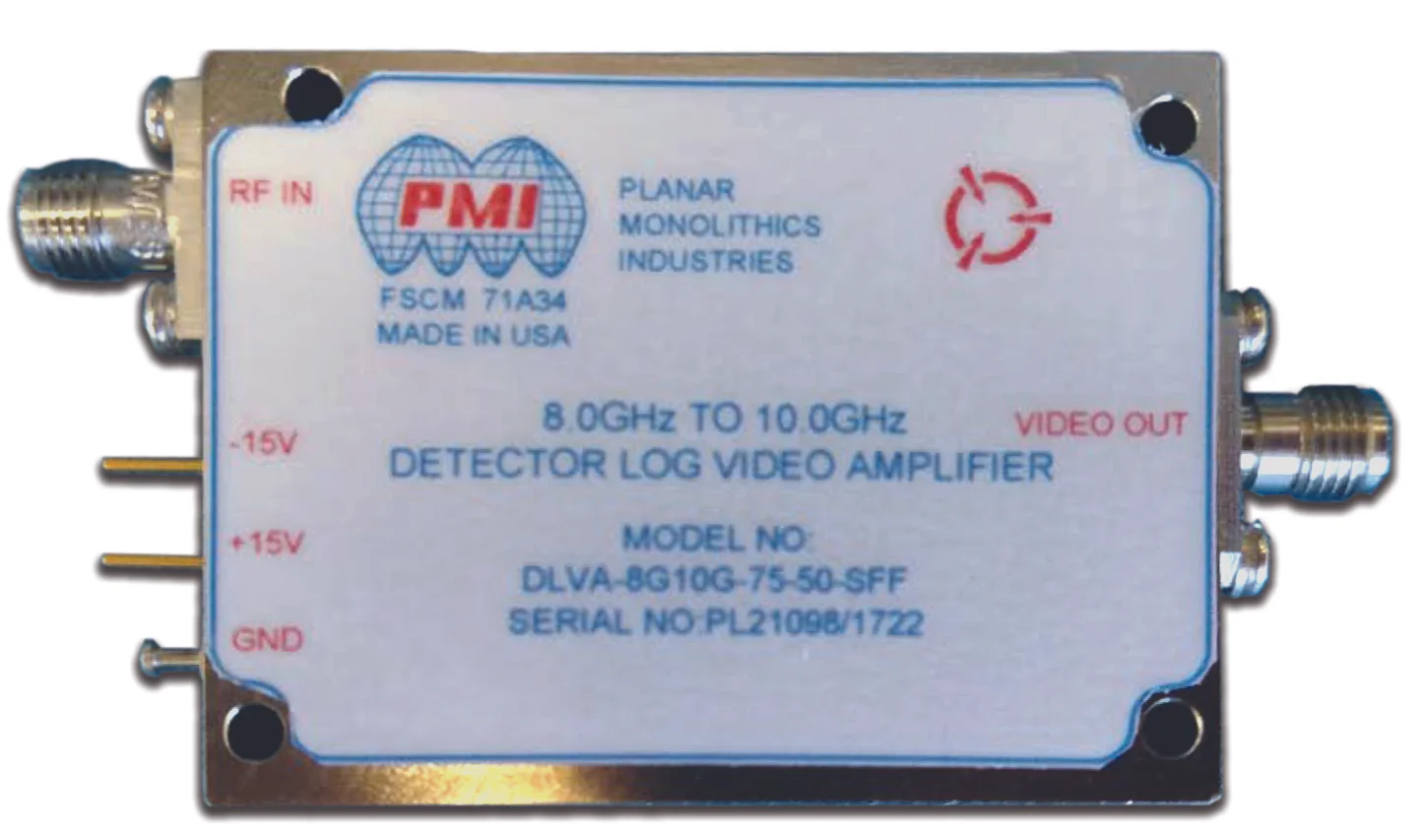

PMI Model No. DLVA-8G10G75-50-SFF is a 8.0 to 10.0 GHz, Detector Log Video
Amplifier. This unit has a dynamic range of -75 dBm to 0 dBm, a log linearity of ±1.8 dB,
and a log slope of 50 ± 4 mV/dB. Other specifications include Frequency Flatness of
±1.2 dB, TSS of -78 dBm, Log Linearity ±1.8 dB - Measured ±1.3 dB, Log Slope 50 ± 4
mV/dB, and Output DC Offset 50 ± 50 mV. Power Supply: +15 V @ 350 mA, -15 V @
100 mA and SMA (F) connectors. Unit size is 2.0" x 1.5" x 0.4" with Electroless Nickel
Plate finish.
