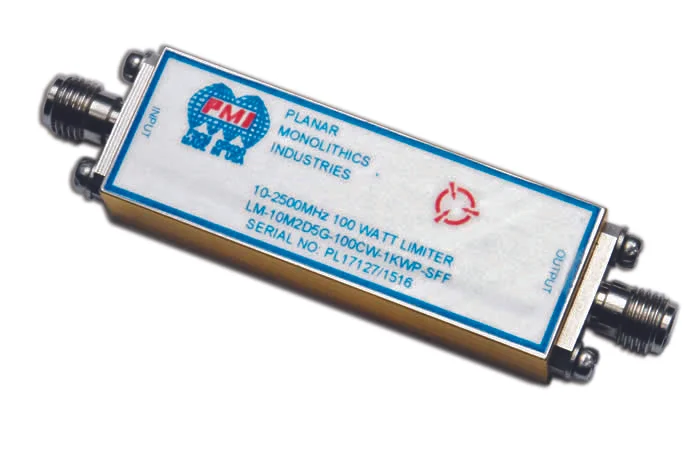

PMI Model No. LM-10M2D5G-100CW-1KWP-SFF is a RF limiter that operates in the 10
MHz to 2.5 GHz frequency range. This limiter can handle 100 W CW and 1 KW peak
(1% duty cycle, 1 μs maximum pulse width) input power and provides a maximum
leakage of +13 dBm CW input. This module has a low insertion loss of 0.5 dB and a
recovery time of 2 μs typical. Package size is 1.86” x 0.65” x 0.38” with SMA
Female connectors
